Mercusys MB520-5G AX3000 Wi-Fi 6 2.5GbE Mesh 5G Router
- Last
Units
- Last
Units
Mercusys MB520-5G AX3000 Wi-Fi 6 2.5GbE Mesh 5G Router
Sem portes gratis
Mercusys MB520-5G AX3000 Dual-Band Wi-Fi 6 5G Router with Mesh
The Mercusys MB520-5G is a next-generation 5G router that transforms mobile signals into high-speed internet for home or office use. With 5G/4G compatibility and speeds up to 4.67 Gbps on the mobile network, it offers a plug & play solution for those seeking fast internet without relying on fiber optics – ideal for use with low-cost operators like DIGI Portugal, WOO, or AMIGO, saving on TV+internet contracts.
Equipped with Wi-Fi 6 AX3000 (2402 Mbps @ 5 GHz + 574 Mbps @ 2.4 GHz), it supports up to 256 devices connected simultaneously with reduced latency and improved energy efficiency. The 2.5 Gbps WAN/LAN port eliminates network bottlenecks, and EasyMesh compatibility allows you to expand Wi-Fi coverage throughout your home.
With installation in seconds via nano-SIM card, management via the MERCUSYS app, RJ11 port for VoLTE calls and advanced security features (VPN, Firewall, parental control), the MB520-5G is the complete solution for those who want fast, stable and hassle-free internet.
5G and 4G connectivity
| 5G networks | n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78 (2100/1800/850/2600/900/800/700 MHz) |
| 4G FDD-LTE Networks | B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700MHz) |
| 4G TDD-LTE Networks | B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700MHz) |
| 3G HSPA+/UMTS networks | B1/B5/B8 (2100/850/900 MHz) |
| Maximum download speed | Up to 4.67 Gbps (5G) |

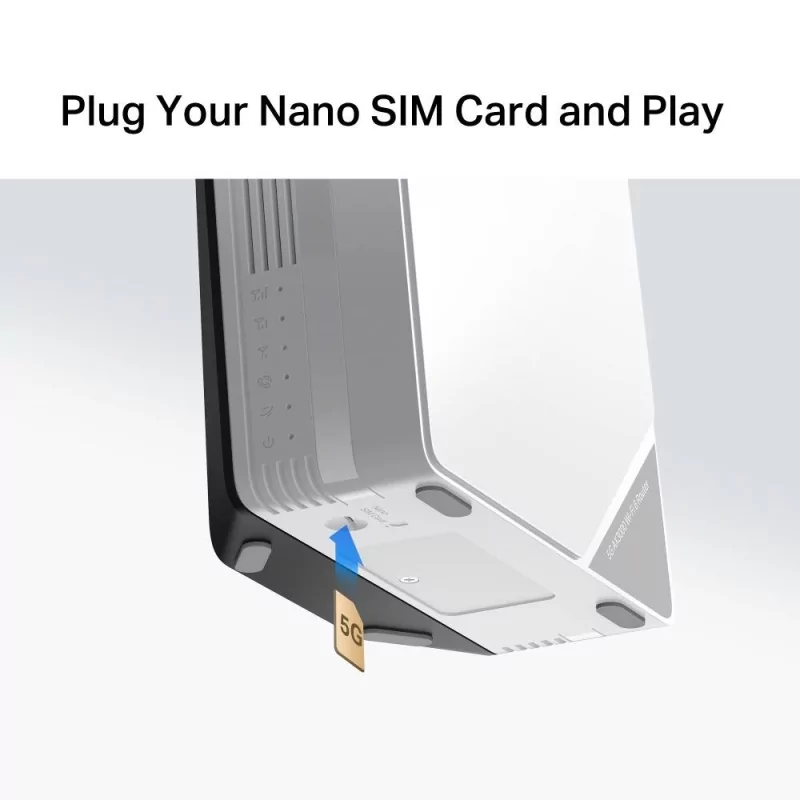

| SIM slot | Nano-SIM (plug & play) |

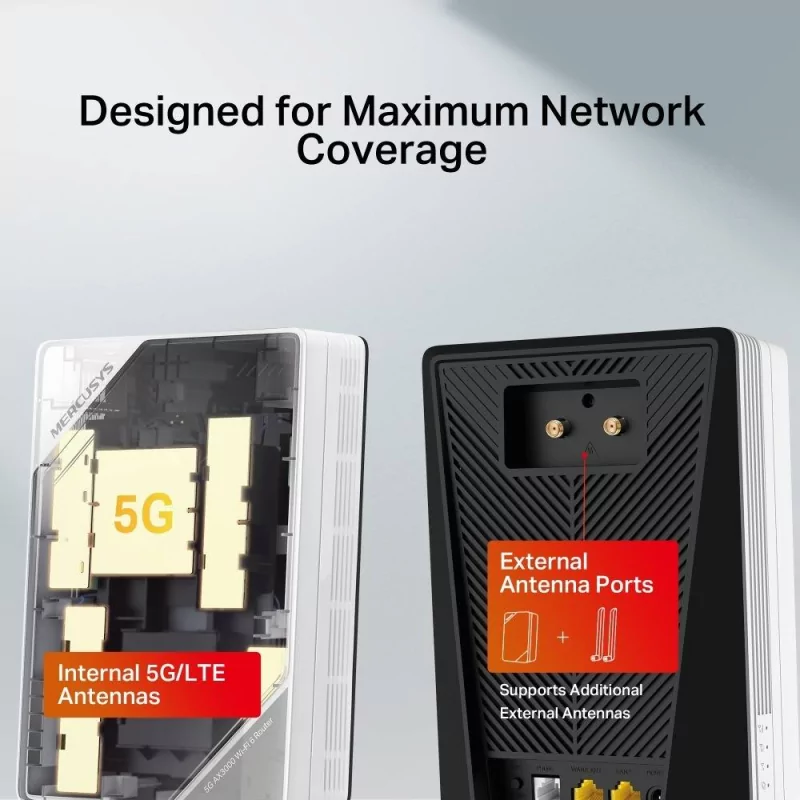

| 5G/4G external antennas | 2 ports for external antennas (optional) |
Wi-Fi 6 and Performance
| Wi-Fi standard | IEEE 802.11ax/ac/a/b/g/n (Wi-Fi 6) |
| Total Wi-Fi speed | AX3000 (2976 Mbps combined) |
| 5 GHz band | Up to 2402 Mbps |
| 2.4 GHz band | Up to 574 Mbps |
| Simultaneous devices | Up to 256 connections |
| Wireless Security | WPA3-SAE, WPA2-PSK, WPA-PSK |
| Wi-Fi features | Smart Connect, WPS, Scheduling, Multi-SSID, EasyMesh |
| Guest network | 2.4 GHz and 5 GHz separate |
| Transmission power | 2.4 GHz < 20dBm / 5 GHz < 23-30dBm (EIRP) |
Physical Connectivity

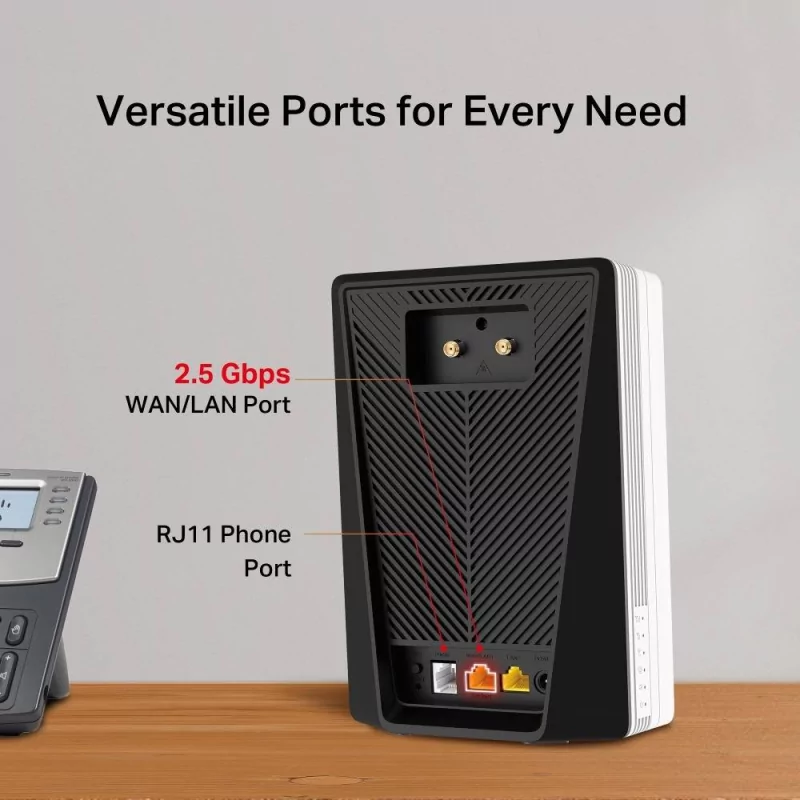

| Main WAN/LAN port | 1 x 2.5 Gigabit Ethernet (configurable) |
| Additional LAN port | 1× Gigabit Ethernet |
| telephone door | 1× RJ11 (VoLTE) |
| 5G/4G external antennas | 2 ports for external antennas |
| SIM slot | 1 x Nano-SIM |
| Operating modes | 5G/4G/3G Router, Wireless Router |
Management and Security
| Management | MERCUSYS app (iOS/Android) + web interface |
| Integrated VPN | OpenVPN, PPTP VPN, IPSec VPN |
| Firewall | IPv4 SPI Firewall, IPv6 Firewall |
| Access control | Service Filtering, Access Control, IP & MAC Binding |
| QoS | Integrated Quality of Service |
| DDNS | DynDNS, NO-IP |
| Parental control | Yes (via the MERCUSYS app) |
Dimensions and Weight
| Product dimensions | 190 × 130 × 69.7 mm |
| Package contents | Router MB520-5G, Power adapter, RJ45 Ethernet cable, RJ11 telephone cable, Quick installation guide |
Frequently Asked Questions
Yes. The MB520-5G is compatible with all 5G/4G/3G networks in Portugal, including MEO, Vodafone, NOS, DIGI, WOO and AMIGO. Simply insert the nano-SIM card of your chosen operator.
No. This is a 5G/4G router that uses the mobile network to provide internet — ideal for locations without fiber optics or for those who want to avoid long-term contracts with traditional operators.
The MB520-5G supports up to 256 devices connected simultaneously via Wi-Fi, making it ideal for homes with many connected devices (smartphones, tablets, Smart TVs, consoles, IoT).
It allows you to connect devices with speeds above 1 Gbps (such as gaming PCs, NAS, or switches) without creating network bottlenecks, making the most of the 5G connection speed.

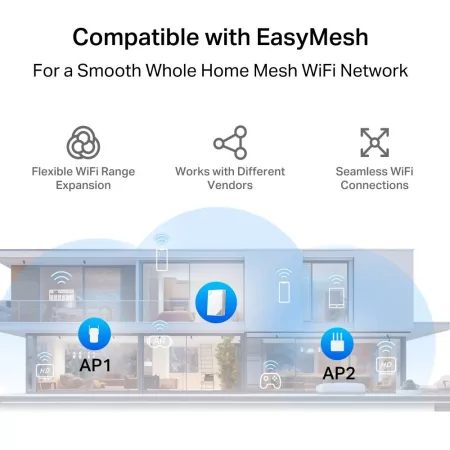

Yes. The MB520-5G supports EasyMesh, allowing you to add other compatible routers to create a mesh network with full home coverage and automatic roaming between access points.
Yes. The RJ11 port allows you to connect a landline and make calls via VoLTE (if the operator supports it). No additional landline is required.
Operators like DIGI Portugal, WOO, or AMIGO offer much more economical rates than traditional TV+NET packages. With the MB520-5G, simply subscribe to one of these mobile plans and have fast internet without contracts or installations — ideal for those who already have streaming services (Netflix, Disney+, etc.) and don't need cable TV.
Benefit from Kontrolsat's 3-year warranty, with dedicated technical support and returns accepted within the first 14 days. Buy with confidence at Kontrolsat!
