HTW IX21D5 Split Air Conditioner - 12,000 BTU

Smart comfort with Wi-Fi control and triple filter.

The HTW IX21D5 (model HTWS035IX21D5-R32) is a highly energy-efficient 1x1 split air conditioning system with integrated Wi-Fi and voice control. Equipped with DC Inverter technology and environmentally friendly R32 refrigerant, this model combines performance, connectivity, and air quality.

Main Features

Integrated Wi-Fi Control

• Wi-Fi included , no additional modules required.
• Voice control: compatible with Alexa and Google Home
• Remote management via smartphone or tablet - control from wherever you are.
• Intuitive application for real-time programming and monitoring.

Advanced Technology

• GMCC Rotary Compressor with Inverter Technology for maximum efficiency.
• R32 refrigerant gas: more environmentally friendly, with less environmental impact and better performance.
• Golden Fin protection on the inner and outer coils for corrosion resistance in saline environments.
• Operating temperature: -15°C to +50°C (cooling) / -20°C to +30°C (heating)

Air Purification - Triple Filter

• 3-in-1 Triple Filter
• Cold Catalyst: eliminates odors and decomposes pollutants.
• Silver Ion: antibacterial and antiviral action
• Activated charcoal: absorbs bad odors and particles.
• Cleaner, healthier air for the whole family.

Smart Functions

• The I Feel sensor function on the remote control uses your location as a temperature reference.
• Night mode silent and economical operation during sleep
• 24-hour timer with flexible programming for automatic on/off.
• The anti-chill function prevents uncomfortable cold drafts in heating mode.
• Dehumidifier with independent humidity control.
• Self-diagnosis: detection and signaling of anomalies
• Leak detector provides additional protection with refrigerant leak alert.

Installation Versatility

• Supports long distances: up to 25 meters of piping.
• Maximum height difference: up to 10 meters
• Condensate drainage on both sides for installation flexibility.

Connect+ (Optional)

• Special board for automatic switching on hotel cards.
• Ideal for tourist apartments and local accommodation.
• Integration with window sensors for automatic shut-off.

Technical Specifications

Interior Unit

• Dimensions: 805 × 194 × 285 mm (W × H × D)
• Weight: 7.3 kg (net) / 9.5 kg (gross)
• Airflow: 310-530 m³/h (adjustable)
• Sound pressure: 21.5-39.5 dB
• Sound power: 54 dB(A)

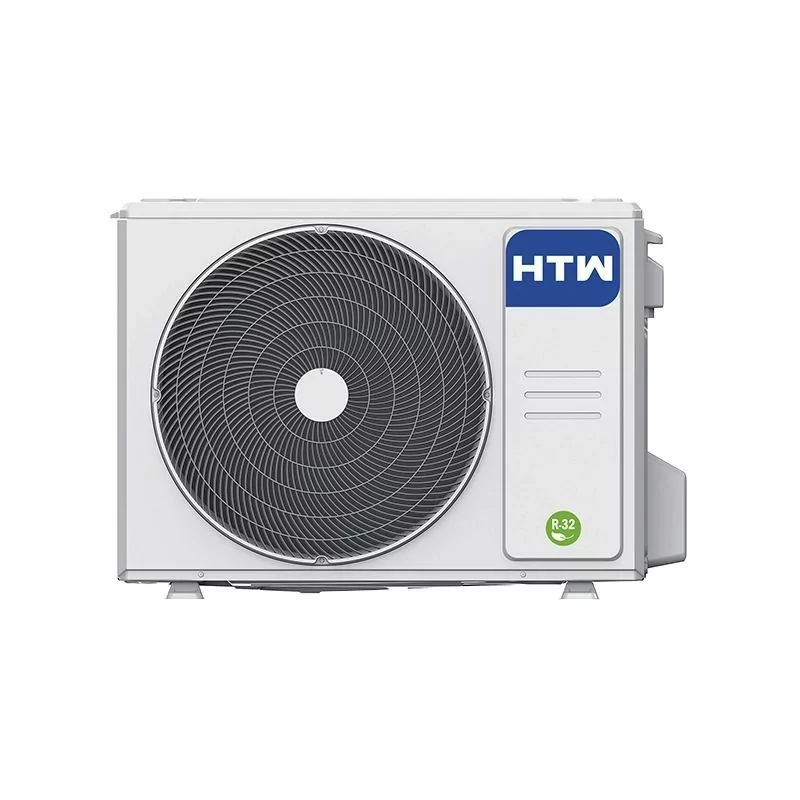

Outdoor Unit

• Dimensions: 720 × 270 × 495 mm (W × H × D)
• Weight: 21 kg (net) / 22.8 kg (gross)
• Air flow rate: 1750 m³/h
• Sound pressure: 55 dB(A)
• Sound power: 64 dB(A)
• Compressor: GMCC Rotary

Installation

• Power supply: 220-240V ~ 50Hz (single phase)
• Electrical connection: 2 × 2.5 mm² + Ground (power supply) | 4 × 2.5 mm² + Ground (interconnection)
• Refrigeration connections: 1/4" - 3/8"
• Gas charge: 0.52 kg R32
• Extra charge: 12 g/m²
• Maximum pipe length: 25 m
• Maximum height difference: 10 m

Ideal for: Living rooms, bedrooms, offices or rooms up to 35m² that require efficient air conditioning with intelligent remote control and air purification.

EAN code: 8435483854079

Model: HTWS035IX21D5-R32
