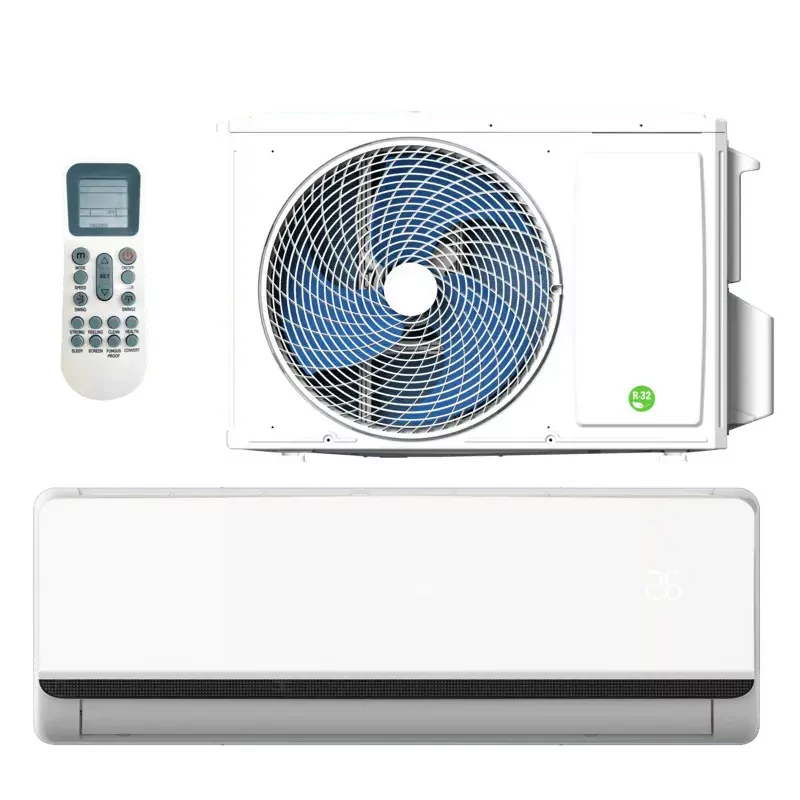

OGITSU OEM2 Split Air Conditioner - 18,000 BTU

High efficiency with advanced air purification.

The OGITSU OEM2 (model S052OEM2) is a highly energy-efficient 1x1 split air conditioning system, standing out for its excellent A++ cooling rating and advanced Triple Filter system for air purification. Equipped with environmentally friendly R32 refrigerant and a GMCC compressor, this model offers the perfect balance between power, efficiency, and air quality.

Main Features

Advanced Air Purification

• Triple 3-in-1 filter for maximum air quality:
• Cold Catalyst: eliminates odors and decomposes pollutants.
• Activated charcoal: absorbs bad odors and harmful particles.
• Silver Ion: antibacterial and antiviral action
• Complete system for a healthier and more hygienic environment.

Technology and Protection

• GMCC compressor with high efficiency and reliability.
• R32 refrigerant gas: more environmentally friendly, lower environmental impact.
• Golden Fin protection on coils for corrosion resistance.
• Operating temperature: -15°C to +50°C (cold) / -15°C to +30°C (hot)

Smart Functions and Security

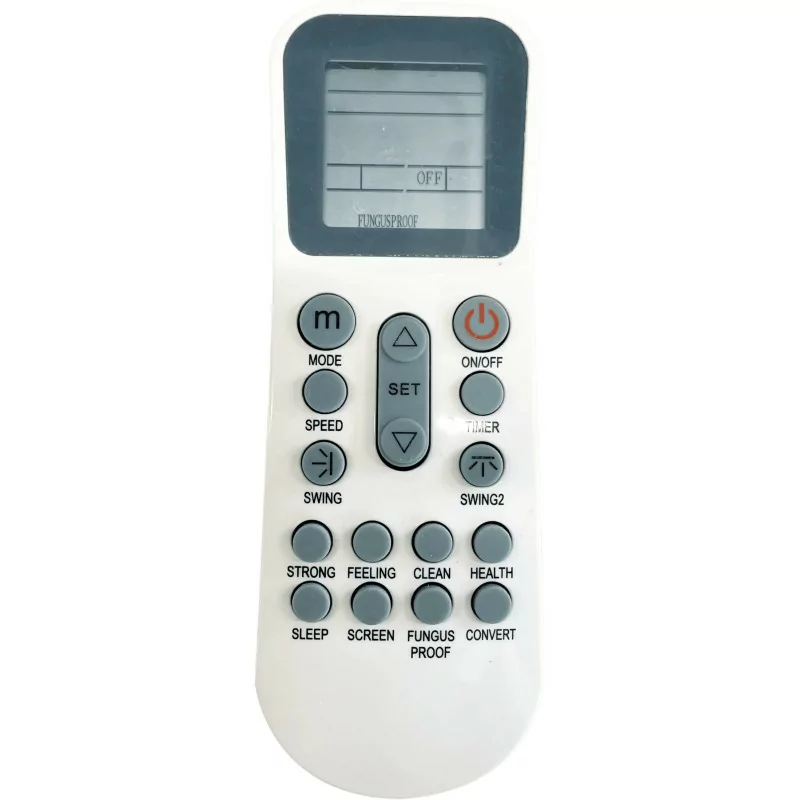

• I Feel Mode: sensor in the remote control that adjusts the temperature according to your location.
• 8°C Mode: safety function that maintains a minimum ambient temperature for freeze protection.
• Auto-restart: automatically resumes settings after a power failure.
• Self-Cleaning: prevents bacteria buildup and eliminates bad odors.
• 24-hour timer: flexible on/off programming
• Selectable temperature: 0°C to 32°C - exceptional range
• Dual drainage: condensate outlet on both sides for versatile installation.

Technical Specifications

Interior Unit

• Dimensions: 900 × 225 × 310 mm (W × H × D)
• Weight: 11 kg (net) / 14 kg (gross)
• Air flow rate: 850 m³/h
• Sound pressure: 25-44 dB
• Sound power: 57 dB(A)

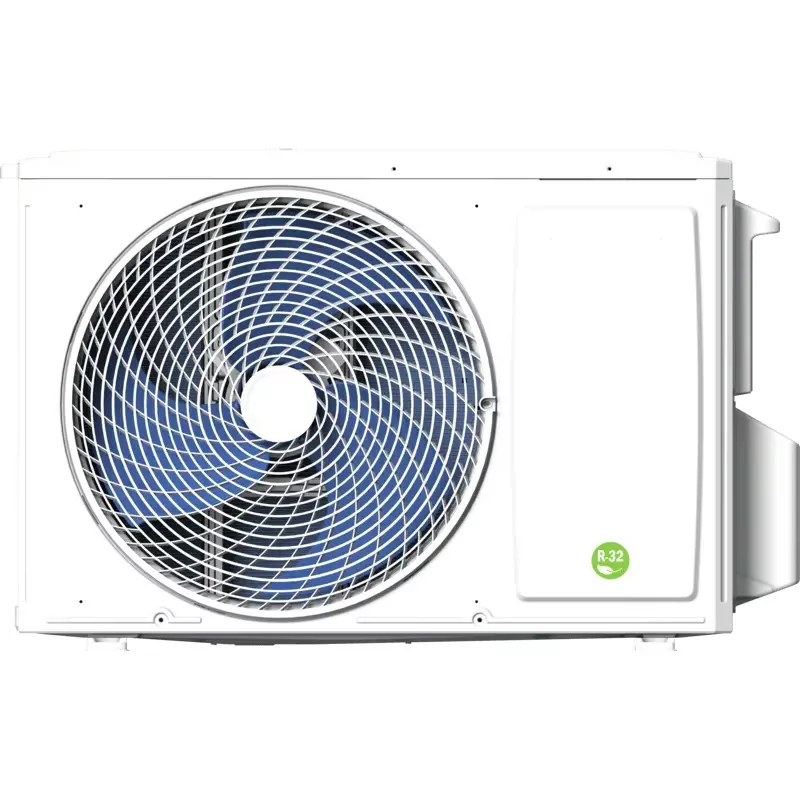

Outdoor Unit

• Dimensions: 715 × 537 × 280 mm (W × H × D)
• Weight: 25 kg (net) / 29 kg (gross)
• Air flow rate: 2300 m³/h
• Sound pressure: 50 dB(A)
• Sound power: 62 dB(A)
• Compressor: GMCC

Installation

• Power supply: 220-240V ~ 50Hz (single phase)
• Electrical connection: 2 × 2.5 mm² + Ground (power supply) | 4 × 2.5 mm² + Ground (interconnection)
• Refrigeration connections: 1/4" - 1/2"
• Gas charge: 0.8 kg R32
• Additional load: 20 g/m²
• Maximum pipe length: 20 m
• Maximum height difference: 10 m

Ideal for: Large rooms, offices, commercial spaces or rooms up to 50m² that require efficient air conditioning with advanced air purification for healthier environments.

Model: S052OEM2
