HTW IX75B Split Air Conditioner - 24,000 BTU

Maximum power with built-in Wi-Fi

The HTW IX75B (model HTWS071IX75B) is a high-power , energy-efficient 1x1 split air conditioning system with integrated Wi-Fi , ideal for air conditioning large rooms or commercial spaces. Equipped with DC Inverter technology and environmentally friendly R32 refrigerant, this model stands out for its robust performance, quiet operation, and intelligent connectivity.

Main Features

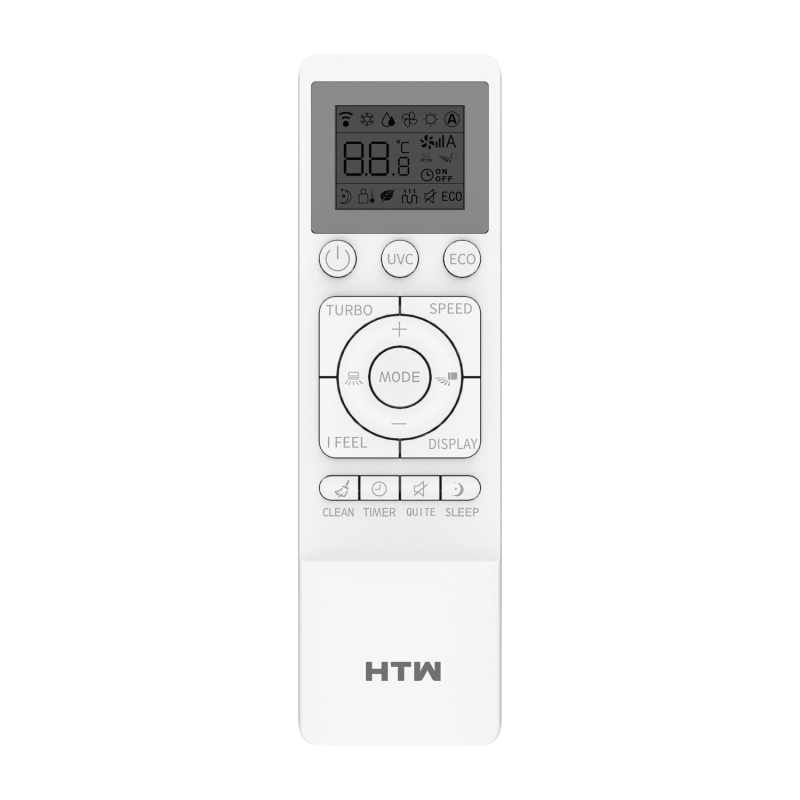

Wi-Fi remote control included.

• Integrated Wi-Fi, no additional modules required.
• Remote management via smartphone or tablet - control from wherever you are.
• Intuitive application for real-time programming and monitoring.
• Smart connectivity for maximum comfort and convenience.

Advanced Technology

• DC Inverter technology for maximum energy efficiency and precise control.
• R32 refrigerant gas: more environmentally friendly, with less environmental impact and better performance.
• Golden Fin protection on coils for superior corrosion resistance.
• Operating temperature: -15°C to +53°C - works even in extreme conditions.
• Selectable indoor temperature: 17°C to 32°C

Smart Functions

• Turbo Mode: rapid cooling/heating for accelerated climate control.
• I Feel function: sensor in the control that adjusts the temperature according to your exact location.
• Auto-restart: automatically resumes settings after a power failure.
• 24-hour timer: flexible programming for automatic on/off.

Technical Specifications

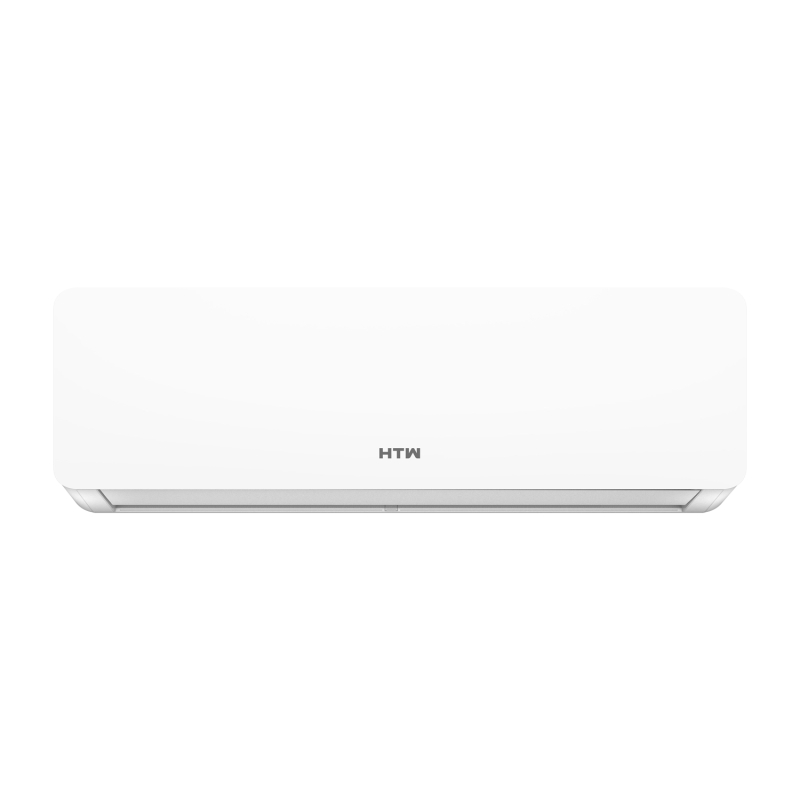

Interior Unit

• Dimensions: 1025 × 319 × 223 mm (W × H × D)
• Weight: 12.6 kg (net) / 15.0 kg (gross)
• Airflow: 800-1200 m³/h (adjustable in 4 speeds)
• Sound pressure: 24-46 dB
• Sound power: 44-59 dB

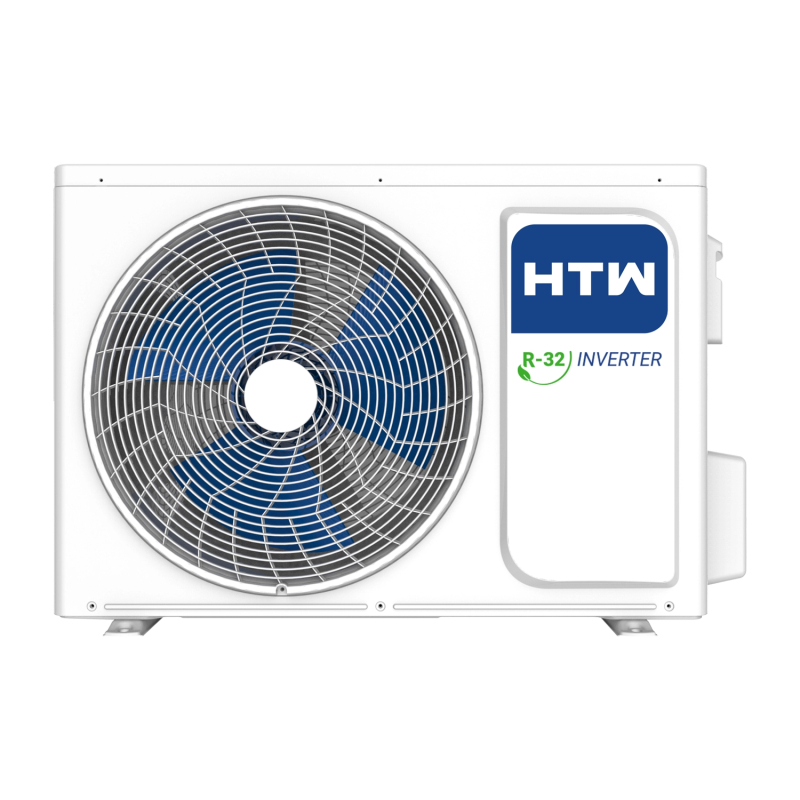

Outdoor Unit

• Dimensions: 820 × 635 × 310 mm (W × H × D)
• Weight: 36.7 kg (net) / 40.7 kg (gross)
• Airflow: 2850 m³/h
• Sound pressure level: 55 dB
• Sound power: 65 dB

Installation

• Power supply: 220-240V ~ 50Hz (single phase)
• Electrical connection: 2 × 2.5 mm² + Ground (power supply) | 4 × 1.5 mm² + Ground (interconnection)
• Refrigeration connections: 3/8" - 5/8"
• Gas charge: 1.40 kg R32
• Extra charge: 15 g/m²
• Maximum pipe length: 25 m
• Maximum elevation difference: 15 m

Ideal for: Large rooms, commercial spaces, large offices or rooms up to 70m² that require powerful, efficient air conditioning with intelligent remote control via Wi-Fi.

EAN code: 8435483869561

Model: HTWS071IX75B
