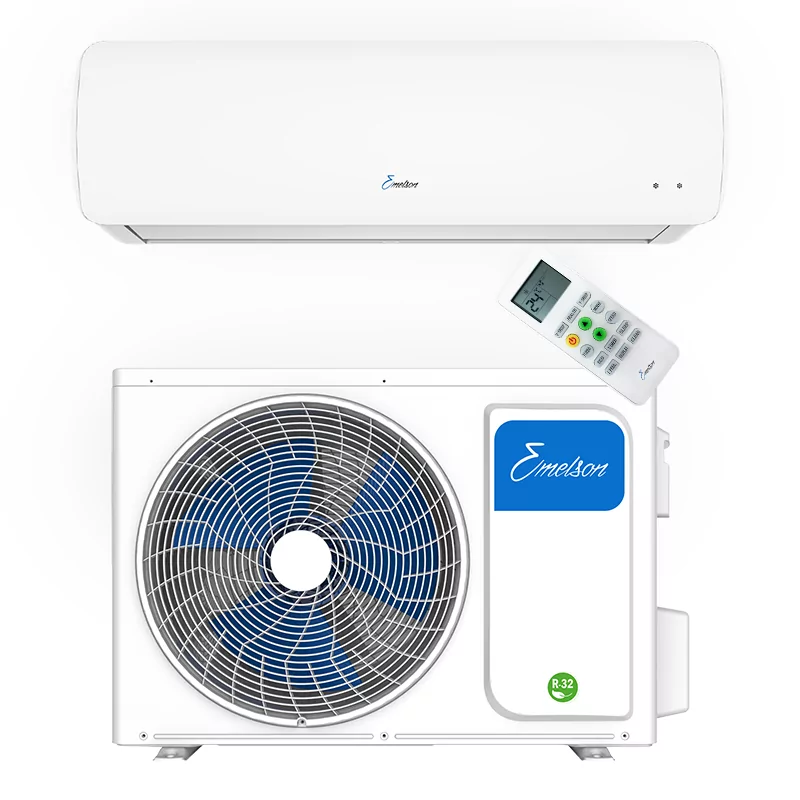

EMELSON EVO Split Air Conditioner - 9,000 BTU

Advanced filtration technology for cleaner air.

The EMELSON EVO (model EML09EVO-R32) is a highly energy-efficient 1x1 split air conditioning system with exclusive filtration technology. Equipped with a 3-in-1 Cold Catalytic Filter (Activated Carbon + Silver Ions), DC Inverter technology, and environmentally friendly R32 refrigerant, this model stands out for its indoor air quality and ultra-quiet operation.

Main Features

3-in-1 Cold Catalytic Converter

• Activated Charcoal: eliminates odors and purifies the air.
• Silver Ions: natural antibacterial and antifungal properties
• Triple filtration system for healthier, cleaner air.
• Protect the health of the whole family with advanced purification technology.
• Reduces allergens and improves indoor air quality.

Advanced Technology

• DC Inverter technology for maximum energy efficiency and precise control.
• R32 refrigerant gas: more environmentally friendly, with less environmental impact and better performance.
• Golden Fin protection on coils for superior corrosion resistance.
• Operating temperature: -15°C to +53°C - works even in extreme conditions.
• Selectable indoor temperature: 17°C to 32°C

Smart Functions

• Turbo Mode: rapid cooling/heating when needed.

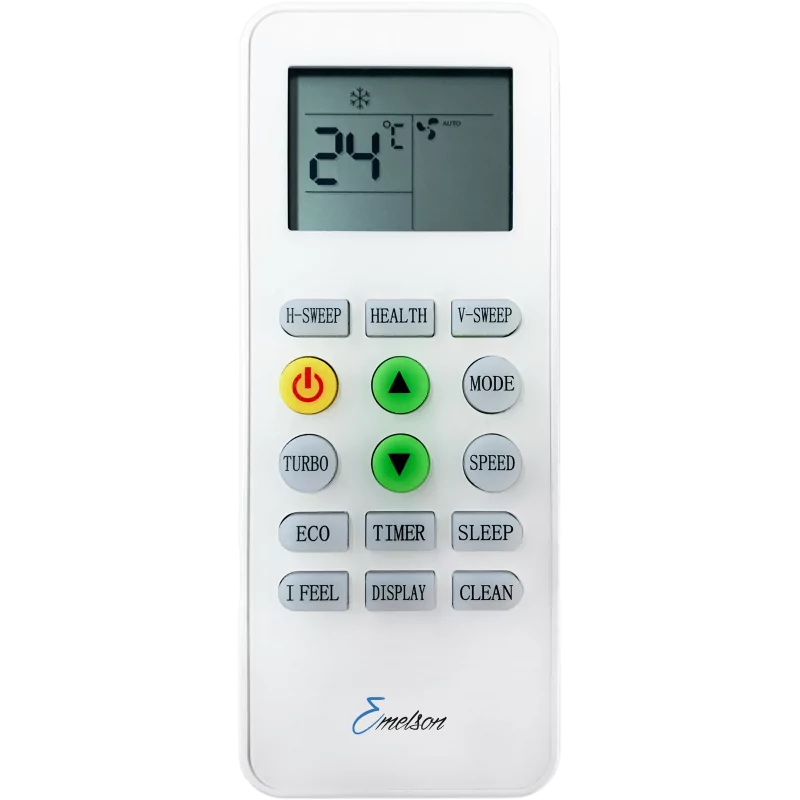

• I Feel function: sensor in the control that adjusts the temperature according to your exact location.
• Auto-restart: automatically resumes settings after a power failure.
• Self-Cleaning: prevents the formation of bacteria and eliminates bad odors.
• 24-hour stopwatch: flexible programming for automatic on/off.

Technical Specifications

Interior Unit

• Dimensions: 700 × 270 × 197 mm (W × H × D)
• Weight: 7 kg (net) / 8 kg (gross)
• Airflow: 350-500 m³/h (adjustable in 4 speeds)
• Sound pressure: 21-40 dB
• Sound power: 37-50 dB

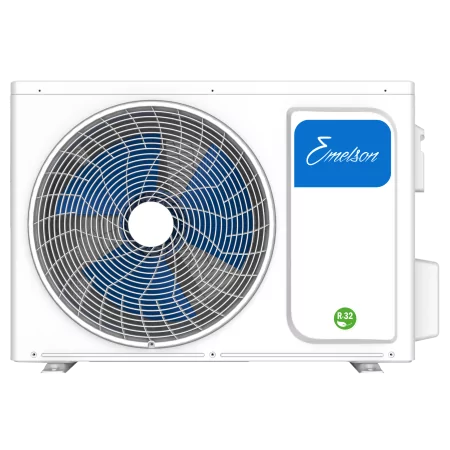

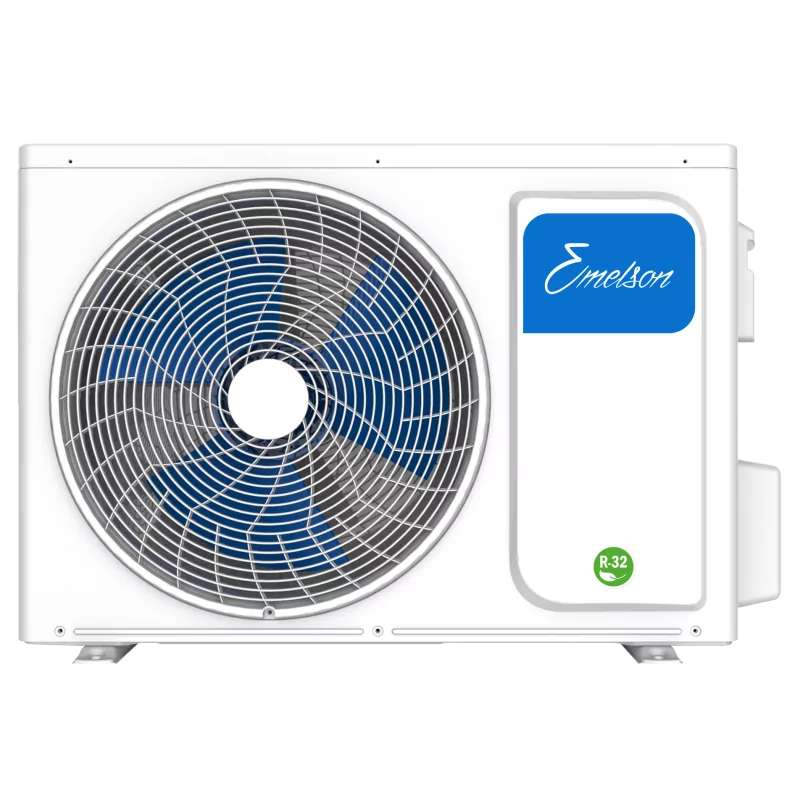

Outdoor Unit

• Dimensions: 665 × 530 × 260 mm (W × H × D)
• Weight: 21.2 kg (net) / 24.3 kg (gross)
• Airflow: 1650 m³/h
• Sound pressure: 52 dB
• Sound power: 62 dB

Installation

• Power supply: 220-240V ~ 50Hz (single phase) - Outdoor unit
• Electrical connection: 2 x 2.5 mm² + Ground (power supply) | 3 x 1.5 mm² + Ground (interconnection)
• Refrigeration connections: 1/4" - 3/8"
• Gas charge: 0.60 kg R32
• Extra charge: 15 g/m²
• Maximum pipe length: 20 m
• Maximum elevation difference: 15 m

Ideal for: Bedrooms, small offices, studios or rooms up to 25m² that require efficient, extremely quiet air conditioning with purified air for greater health and well-being.

EAN code: 8435483871182

Model: EML09EVO-R32
