UHF Mast Amplifier Kit - 1 Int 32dB - AM-195 - ALCAD

2 in 1 kit

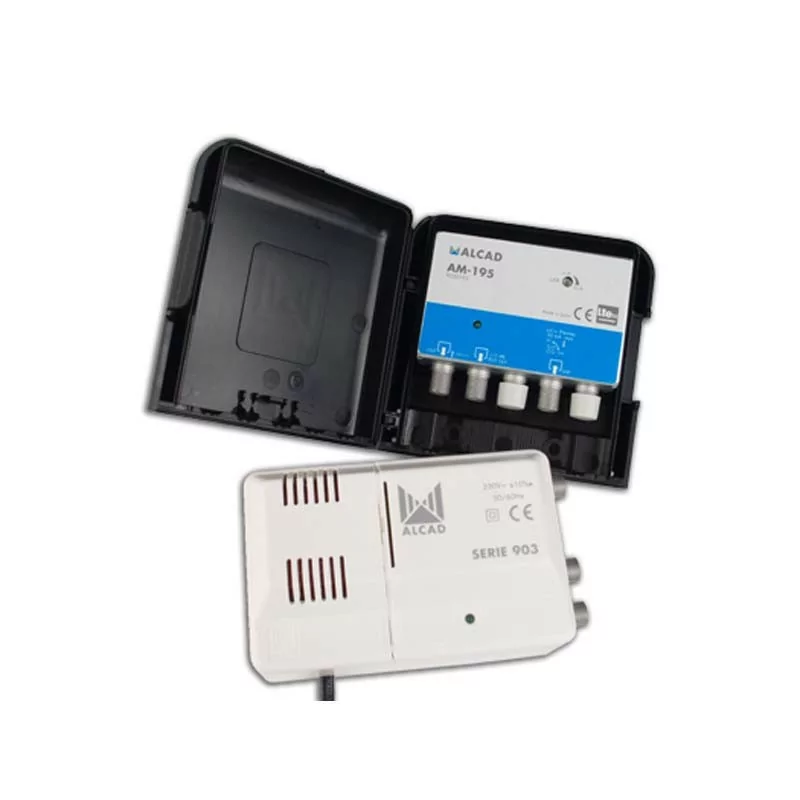

Set consisting of a mast amplifier and a power supply.

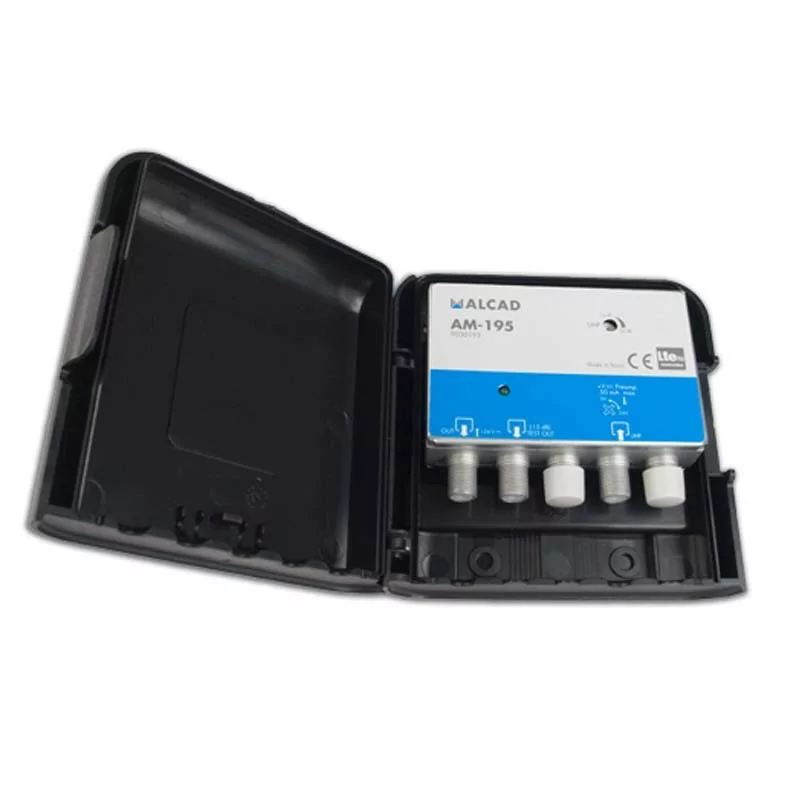

mast amplifier

Broadband amplifier for masts, compatible with LTE700 mobile phone signals with amplification band in UHF 470-694 MHz. It has an input to amplify and combine the signals from the antennas . It is powered through coaxial cable from a power supply installed inside the building. It incorporates a switchable DC path, allowing power to be supplied to a preamp.

applications

Suitable for individual analogue and digital terrestrial TV installations that are affected by the transmission of LTE700 mobile phone signals and that require low gain. It amplifies and mixes the signals from several antennas. The obtained signal can be distributed to a large number of TV points through a single coaxial cable .

Features

Armored zamak chassis, covered by a weather resistant plastic case. Easy to open and close, the chassis can be tilted for easy handling. It can be installed on a mast, using a polyamide clamp, or on a wall. Sun and water resistant (IP53). Greater isolation between inputs and outputs.
